- RS Best.-Nr.:
- 704-3417
- Herst. Teile-Nr.:
- ANT-GSMMQB-UFL
- Marke:
- RF Solutions
Verfügbarkeitsanzeige zurzeit leider nicht möglich - bitte versuchen Sie es später erneut.
Nicht als Expresslieferung erhältlich
Im Warenkorb
Preis pro Stück
5,51 €
(ohne MwSt.)
6,56 €
(inkl. MwSt.)
Stück | Pro Stück |
1 - 4 | 5,51 € |
5 + | 5,24 € |
- RS Best.-Nr.:
- 704-3417
- Herst. Teile-Nr.:
- ANT-GSMMQB-UFL
- Marke:
- RF Solutions
Mehr Infos und technische Dokumente
Rechtliche Anforderungen
Produktdetails
Mini-Quad-Band-Leiterplattenantenne für GSM
Quadband 850 / 900 / 1800 / 1900 MHz
Impedanz von 50 Ohm
Nennleistung: 10 W
Untergrundunabhängig
Impedanz von 50 Ohm
Nennleistung: 10 W
Untergrundunabhängig
GSMQB-Antenne
Leiterplattenantenne mit höherer Leistung
Aktive Verstärkung: +1 dB
VSWR <=2,0
Lineare Polarisation
150 mm RG178-Netzkabel
Lieferung mit MMCX-Steckverbinder
Betriebsspannung: 2,7 bis 5,5 V
110 x 20 x 5 mm
Aktive Verstärkung: +1 dB
VSWR <=2,0
Lineare Polarisation
150 mm RG178-Netzkabel
Lieferung mit MMCX-Steckverbinder
Betriebsspannung: 2,7 bis 5,5 V
110 x 20 x 5 mm

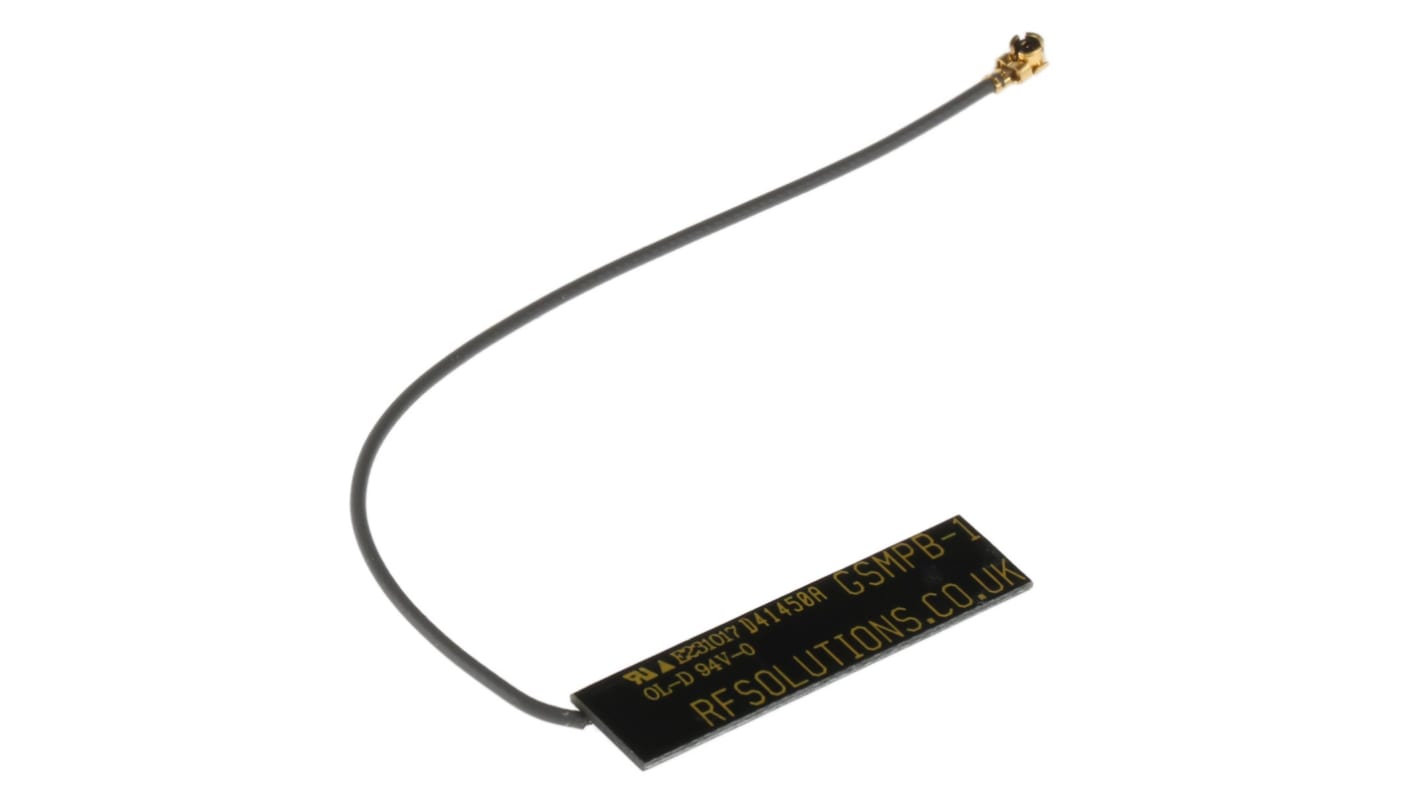

GSMMQB-Antenne
Miniatur-Leiterplattenantenne
VSWR <=3,0
Omnidirektional
Horizontale Polarisierung
100 mm RG174-Netzkabel
Lieferung mit UFL-Steckverbinder
34 x 7 x 0,8 mm
VSWR <=3,0
Omnidirektional
Horizontale Polarisierung
100 mm RG174-Netzkabel
Lieferung mit UFL-Steckverbinder
34 x 7 x 0,8 mm
GSM-Antennen (Global System for Mobile Communications)
Technische Daten
Eigenschaft | Wert |
---|---|
HF-Protokolle | 2G (GSM/GPRS) |
Frequenzbereich | 850 MHz, 900 MHz, 1800 MHz, 1900 MHz |
Physische Form Antenne | Vierkant |
Anschlusstyp | UFL |
Verstärkung | 1dBi |
Richtcharakteristik Antenne | Rundstrahlantenne |
Anschlusslänge | 0.1m |
