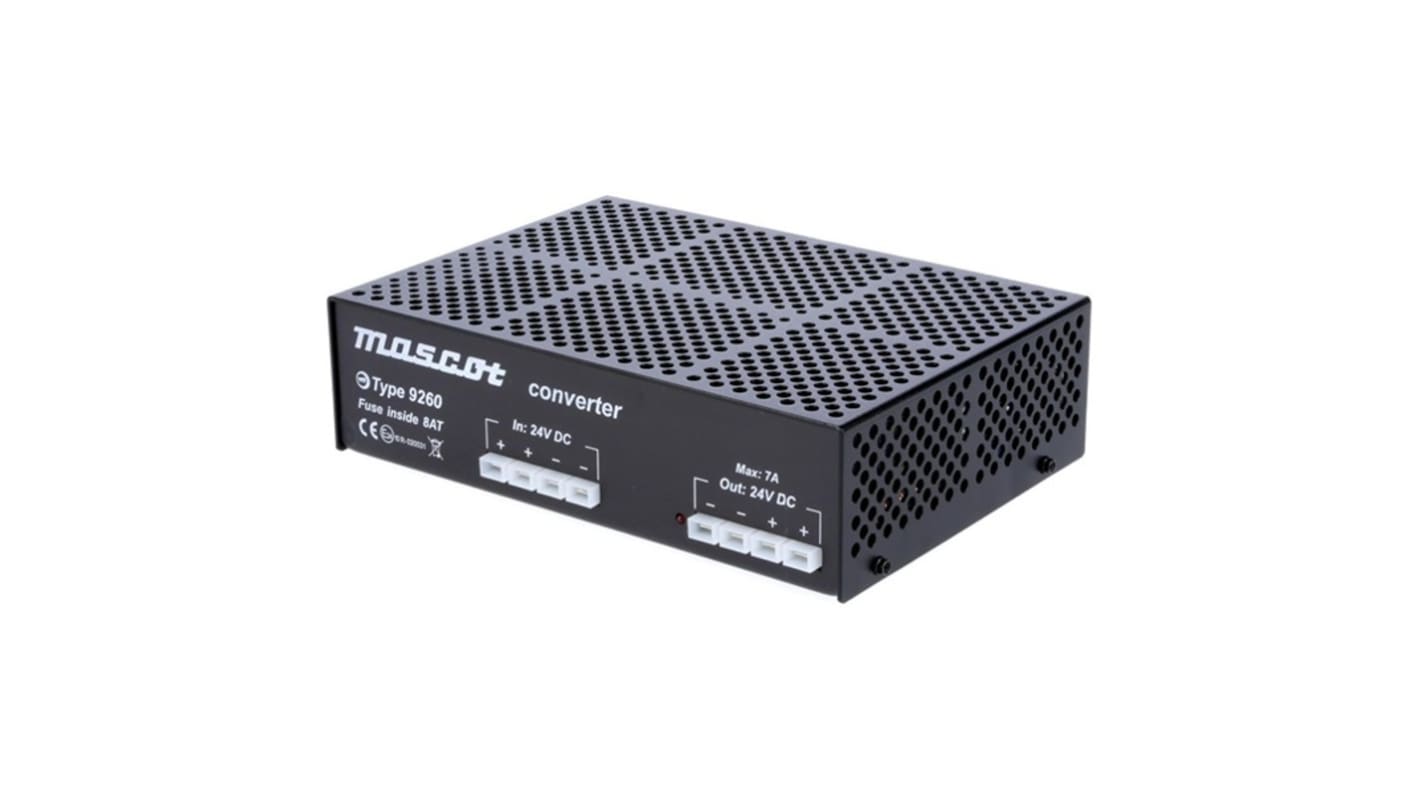

Mascot 9262 DC/DC Konverter 264V -20 °C 25 °C
- RS Best.-Nr.:
- 287-6715
- Distrelec-Artikelnummer:
- 169-89-925
- Herst. Teile-Nr.:
- 9260242400
- Marke:
- Mascot
Derzeit nicht erhältlich
Wir wissen nicht, ob wir diesen Artikel noch einmal auf Lager haben werden. RS beabsichtigt, ihn bald aus dem Sortiment zu nehmen.
- RS Best.-Nr.:
- 287-6715
- Distrelec-Artikelnummer:
- 169-89-925
- Herst. Teile-Nr.:
- 9260242400
- Marke:
- Mascot
Technische Daten
Mehr Infos und technische Dokumente
Rechtliche Anforderungen
Produktdetails
Finden Sie ähnliche Produkte, indem Sie ein oder mehrere Eigenschaften auswählen.
Alle auswählen | Eigenschaft | Wert |
|---|---|---|
| Marke | Mascot | |
| Serie | 9262 | |
| Produkt Typ | DC/DC Konverter | |
| Eingangsspannung max. | 264 V | |
| Betriebstemperatur min. | -20 °C | |
| Maximale Betriebstemperatur | 25 °C | |
| Distrelec Product Id | 16989925 | |
| Wirkungsgrad | 0.82 % | |
| Eingangsspannung min. | 264 V | |
| Anzahl der Ausgänge | 1 | |
| Normen/Zulassungen | No | |
| Breite | 148 mm | |
| Alle auswählen | ||
|---|---|---|
Marke Mascot | ||
Serie 9262 | ||
Produkt Typ DC/DC Konverter | ||
Eingangsspannung max. 264 V | ||
Betriebstemperatur min. -20 °C | ||
Maximale Betriebstemperatur 25 °C | ||
Distrelec Product Id 16989925 | ||
Wirkungsgrad 0.82 % | ||
Eingangsspannung min. 264 V | ||
Anzahl der Ausgänge 1 | ||
Normen/Zulassungen No | ||
Breite 148 mm | ||
- Ursprungsland:
- EE
The regulated DC/DC converter offers protection against reversed polarity, overvoltage, thermal protection, and short circuits. It is electrically separated from the chassis and provides efficient performance with an output voltage of 13.2VDC. The compact size and adjustable features make it a reliable choice for various applications.
Max. output power of 158W
Protection against reversed polarity and overvoltage
Thermal protection and short circuit proof
Electrically separated input and output
Adjustable output voltage range of 11.5 to 14.5VDC
Compact size with mounting brackets available
Efficiency of 82% under 12A load
EMC compliant with standards EN 61000-6-1 and EN 61000-6-3
