- RS Best.-Nr.:
- 146-5603
- Herst. Teile-Nr.:
- 410-345
- Marke:
- Digilent
2 Lieferbar am folgenden Werktag (Mo-Fr) bei Bestelleingang werktags bis 22 Uhr.
Preis pro Stück
12,97 €
(ohne MwSt.)
15,43 €
(inkl. MwSt.)
Stück | Pro Stück |
1 - 4 | 12,97 € |
5 - 9 | 12,62 € |
10 - 24 | 12,30 € |
25 + | 11,99 € |
- RS Best.-Nr.:
- 146-5603
- Herst. Teile-Nr.:
- 410-345
- Marke:
- Digilent
Mehr Infos und technische Dokumente
Rechtliche Anforderungen
Produktdetails

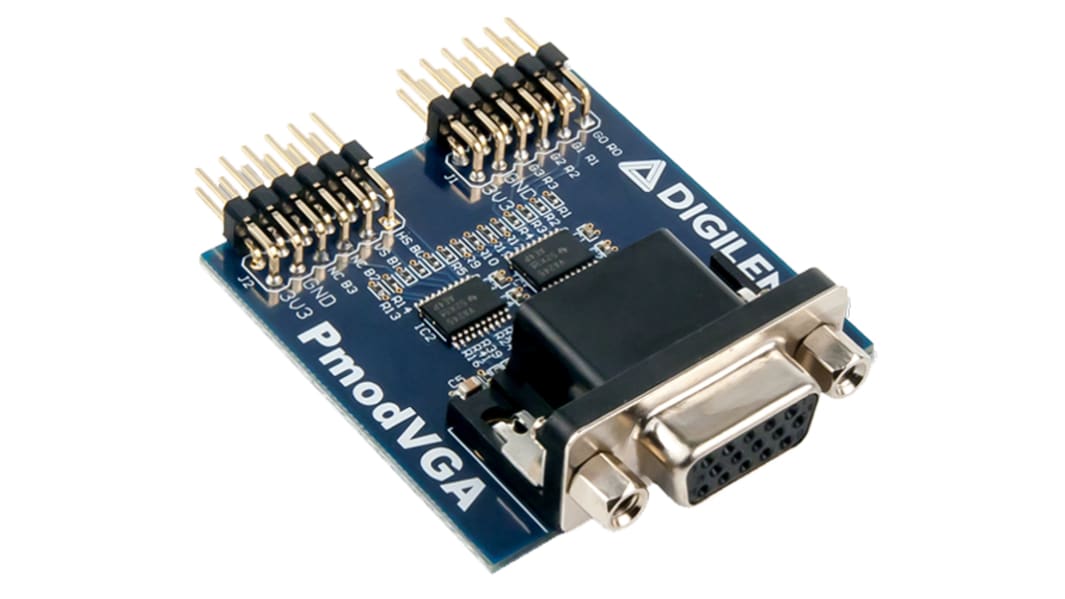

Der Pmod-VGA bietet einen VGA-Port für jede Platine mit Pmod-Anschluss. Über den VGA-Anschluss können Standard-Displays wie Fernseher und Monitore angesteuert werden. Die Hostplatine muss einen schnellen parallelen Datenbus ansteuern können, um ein Display mit dem Pmod-VGA korrekt zu betreiben.
Standard-VGA-Anschluss zum Anschließen üblicher Displays
12-Bit Farbtiefe RGB444
Einfache Hochgeschwindigkeits-R-2R-Widerstandsleiter DAC
Hochgeschwindigkeits-Pufferunterstützung für Pixelclocks bis zu 150 MHz
Kleine Leiterplattengröße für flexible Designs 1,7 Zoll x 1,7 Zoll (4,3 cm x 4,3 cm)
12-poliger Zweifach-Pmod-Steckverbinder mit GPIO-Schnittstelle
Folgt der Digilent Pmod-Schnittstellenspezifikation
12-Bit Farbtiefe RGB444
Einfache Hochgeschwindigkeits-R-2R-Widerstandsleiter DAC
Hochgeschwindigkeits-Pufferunterstützung für Pixelclocks bis zu 150 MHz
Kleine Leiterplattengröße für flexible Designs 1,7 Zoll x 1,7 Zoll (4,3 cm x 4,3 cm)
12-poliger Zweifach-Pmod-Steckverbinder mit GPIO-Schnittstelle
Folgt der Digilent Pmod-Schnittstellenspezifikation
Technische Daten
Eigenschaft | Wert |
---|---|
Klassifizierung | Development Board |
Technologie | Entwicklungsplatine |
Kit-Klassifizierung | Development Kit |
Kit-Name | Pmod VGA |
