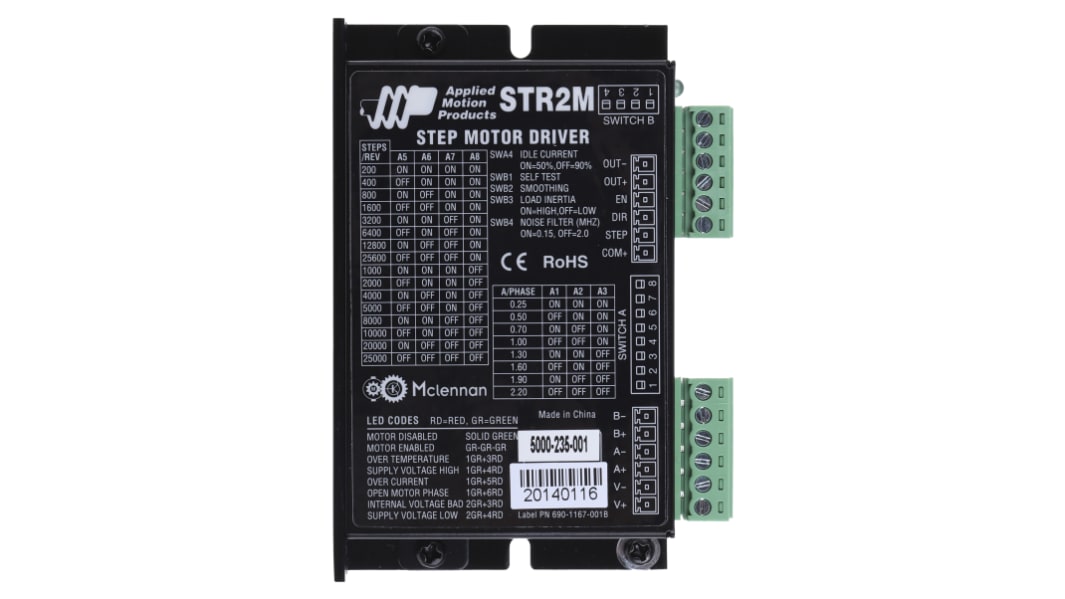

Applied Motion Systems Schrittmotorsteuerung, 12 → 48 V dc / 0,3 → 2,2 A, 93mm x 56mm x 21mm
- RS Best.-Nr.:
- 877-7216
- Herst. Teile-Nr.:
- STR-2M
- Marke:
- Applied Motion Systems
3 Lieferbar am folgenden Werktag (Mo-Fr) bei Bestelleingang werktags bis 22 Uhr.
31 weitere lieferbar innerhalb 4 Werktag(e) (Mo-Fr).
Preis pro Stück
236,74 €
(ohne MwSt.)
281,72 €
(inkl. MwSt.)
Stück | Pro Stück |
---|---|
1 + | 236,74 € |
- RS Best.-Nr.:
- 877-7216
- Herst. Teile-Nr.:
- STR-2M
- Marke:
- Applied Motion Systems
Mehr Infos und technische Dokumente
Rechtliche Anforderungen
- Ursprungsland:
- US
Produktdetails
STR - Schrittmotor
STR - Schrittmotorantrieb mit hoher Leistung.
Einfache Treiberkonfiguration, integrierte DIP-Schalter dienen zum Konfigurieren von Betriebsstrom, Ruhestrom, Lastenträgheitsverhältnis und Schrittauflösung.
Einfache Treiberkonfiguration, integrierte DIP-Schalter dienen zum Konfigurieren von Betriebsstrom, Ruhestrom, Lastenträgheitsverhältnis und Schrittauflösung.
STR-Schrittmotor
Zweifache H-Brücke, 4 Quadranten
4-Zustands-PWM bei 16 kHz
Über Schalter auswählbare Parameter
Antiresonanz
Mikroschritte
Mikroschrittemulation
Selbsttest
Einfache Einrichtung, keine Software erforderlich
Technische Daten
Eigenschaft | Wert |
---|---|
Nennstrom | 0,3 → 2,2 A |
Betriebsspannung | 12 → 48 V dc |
Gesamtlänge | 93mm |
Gesamtbreite | 56mm |
Gesamttiefe | 21mm |
