Rittal AE Edelstahl 304 Wandanschlusskasten farblos IP66, HxBxT 300 mm, 200 mm x 155 mm
- RS Best.-Nr.:
- 784-6121
- Distrelec-Artikelnummer:
- 150-18-205
- Herst. Teile-Nr.:
- 1002600
- Marke:
- Rittal
Eingestellt
- RS Best.-Nr.:
- 784-6121
- Distrelec-Artikelnummer:
- 150-18-205
- Herst. Teile-Nr.:
- 1002600
- Marke:
- Rittal
Technische Daten
Mehr Infos und technische Dokumente
Rechtliche Anforderungen
Produktdetails
Finden Sie ähnliche Produkte, indem Sie ein oder mehrere Eigenschaften auswählen.
Alle auswählen | Eigenschaft | Wert |
|---|---|---|
| Marke | Rittal | |
| Äußere Höhe | 300mm | |
| Produkt Typ | Wandanschlusskasten | |
| Äußere Tiefe | 155mm | |
| Gehäusematerial | Edelstahl 304 | |
| Transparente Tür | Nein | |
| IP-Schutzart | IP66 | |
| Montageplatte | Nein | |
| Türschloss-Typ | Nocke | |
| Kabeleinführungsplatte | Nein | |
| Äußere Breite | 200mm | |
| Farbe | farblos | |
| Typ Innenmontage | Frontplatte | |
| Serie | AE | |
| Normen/Zulassungen | cUL, IEC 60529, IEC 62208, IEC 62262, UL | |
| Befestigungskit | Nein | |
| IK-Klassifizierung | IK08 | |
| Alle auswählen | ||
|---|---|---|
Marke Rittal | ||
Äußere Höhe 300mm | ||
Produkt Typ Wandanschlusskasten | ||
Äußere Tiefe 155mm | ||
Gehäusematerial Edelstahl 304 | ||
Transparente Tür Nein | ||
IP-Schutzart IP66 | ||
Montageplatte Nein | ||
Türschloss-Typ Nocke | ||
Kabeleinführungsplatte Nein | ||
Äußere Breite 200mm | ||
Farbe farblos | ||
Typ Innenmontage Frontplatte | ||
Serie AE | ||
Normen/Zulassungen cUL, IEC 60529, IEC 62208, IEC 62262, UL | ||
Befestigungskit Nein | ||
IK-Klassifizierung IK08 | ||
- Ursprungsland:
- DE

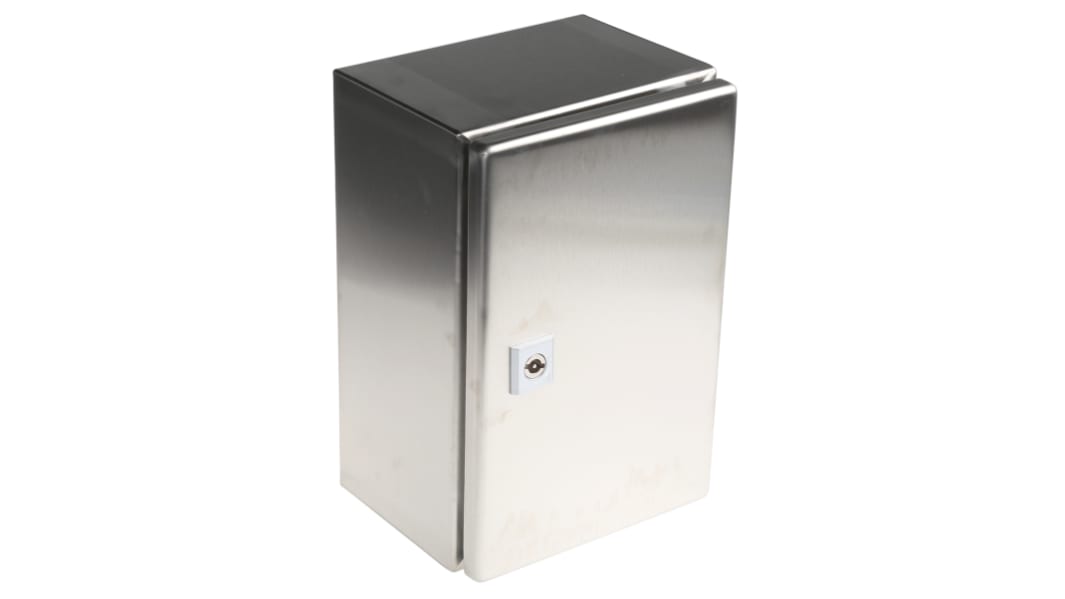

Rittal Stainless Steel Wall Box, IP66, 155mm Depth - AE Series - 1002600
Protect your electrical and mechanical components from heat, dust and moisture with this robust wall box from Rittal. As it's made of high-quality 304-grade stainless steel, this enclosure offers excellent durability and resistance to corrosion, so you can use it in a range of demanding environments. It has a polyurethane (PU) seal on its door and an IP66 (ingress protection) rating for protection against dust and high-pressure water jets.
Features & Benefits
• Cam door lock to prevent unauthorised access and ensure the safety of interior components
• Interchangeable door hinges for easy replacement
• Compact dimensions of 300 (height) x 200 (width) x 155mm (depth) to fit into areas with limited space
• Wide door swing angle of 130° for ease of access to the interior of the box
Applications
• Rack-mounting computer components
• Security equipment
• Industrial power and control systems
Are there any safety precautions I should take when installing this box?
If electrical components are running inside the enclosure, it's important to install a cooling system to ensure the components don't overheat. You should also earth this box using a metal grounding screw to prevent electrical hazards.
