- RS Best.-Nr.:
- 230-3124
- Herst. Teile-Nr.:
- nRF21540-DB
- Marke:
- Nordic Semiconductor
2 lieferbar innerhalb von 1 Werktag(en) (Mo-Fr).
Nicht als Expresslieferung erhältlich
Im Warenkorb
Preis pro Stück
87,08 €
(ohne MwSt.)
103,63 €
(inkl. MwSt.)
Stück | Pro Stück |
1 - 1 | 87,08 € |
2 - 4 | 84,78 € |
5 - 9 | 82,62 € |
10 + | 80,55 € |
- RS Best.-Nr.:
- 230-3124
- Herst. Teile-Nr.:
- nRF21540-DB
- Marke:
- Nordic Semiconductor
Mehr Infos und technische Dokumente
Rechtliche Anforderungen
- Ursprungsland:
- PL
Produktdetails

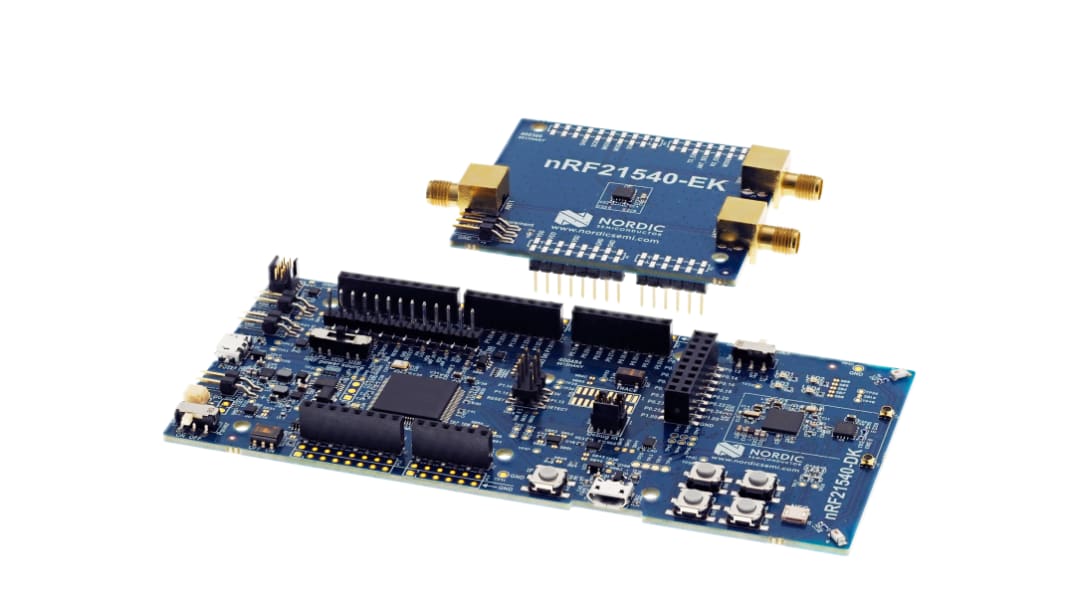

Entwicklungspaket bestehend aus einem EK und DK, beide mit einem HF-Frontend-Modul (FEM) für 2,4-GHz-Wireless-Bereichserweiterung
Packungsinhalt
1 x nRF21540 DK, 1 x nRF21540 EK1
NRF21540 EK
HF-FEM-Evaluierungskit für 2,4-GHz-Wireless-Bereichserweiterung
Drahtlose Protokollunterstützung - Bluetooth Low Energy/Bluetooth Mesh/, 802.15.4/Thread/Zigbee/2,4 GHz proprietär
Antennen - 2 SMA-Antennenanschlüsse
Digitale Schnittstellen - SPI und E/As
Netzteil - 1,7 bis 3,6 V
Stromquelle - 1,7 bis 3,6 V
Antennen - 2 SMA-Antennenanschlüsse
Digitale Schnittstellen - SPI und E/As
Netzteil - 1,7 bis 3,6 V
Stromquelle - 1,7 bis 3,6 V
NRF21540 DK
Drahtlose Protokollunterstützung - Bluetooth Low Energy/Bluetooth Mesh/, 802.15.4/Thread/Zigbee/2,4 GHz proprietär
Antennen - 2 Chip-Antennen, 2 SWF-Antennenanschlüsse
Analoge Schnittstellen ADC
Digitale Schnittstellen - USB 2.0, NFC-A-Tag, UART, TWI, I2S, PDM, PWM, QDEC, SPI, E/As
Netzteil - 1,7 bis 5,5 V
Stromquelle - USB, Batterie Li-Po extern (nicht im Lieferumfang enthalten)
Debugger - Segger J-Link OB
Tasten - 4
LEDs - 4
Antennen - 2 Chip-Antennen, 2 SWF-Antennenanschlüsse
Analoge Schnittstellen ADC
Digitale Schnittstellen - USB 2.0, NFC-A-Tag, UART, TWI, I2S, PDM, PWM, QDEC, SPI, E/As
Netzteil - 1,7 bis 5,5 V
Stromquelle - USB, Batterie Li-Po extern (nicht im Lieferumfang enthalten)
Debugger - Segger J-Link OB
Tasten - 4
LEDs - 4
HF FEM-Entwicklungskit für 2,4-GHz-Wireless-Bereichserweiterung
Technische Daten
Eigenschaft | Wert |
---|---|
Klassifizierung | Entwicklungskit, Evaluierungskit |
HF-Technologie | Bluetooth, ZigBee |
Kit-Klassifizierung | Entwicklungskit, Evaluierungskit |
Zum Einsatz mit | NRF21540 |
Vorgestelltes Gerät | nRF21540 |
Frequenz | 2.4GHz |
Kit-Name | nRF21540 DB |
