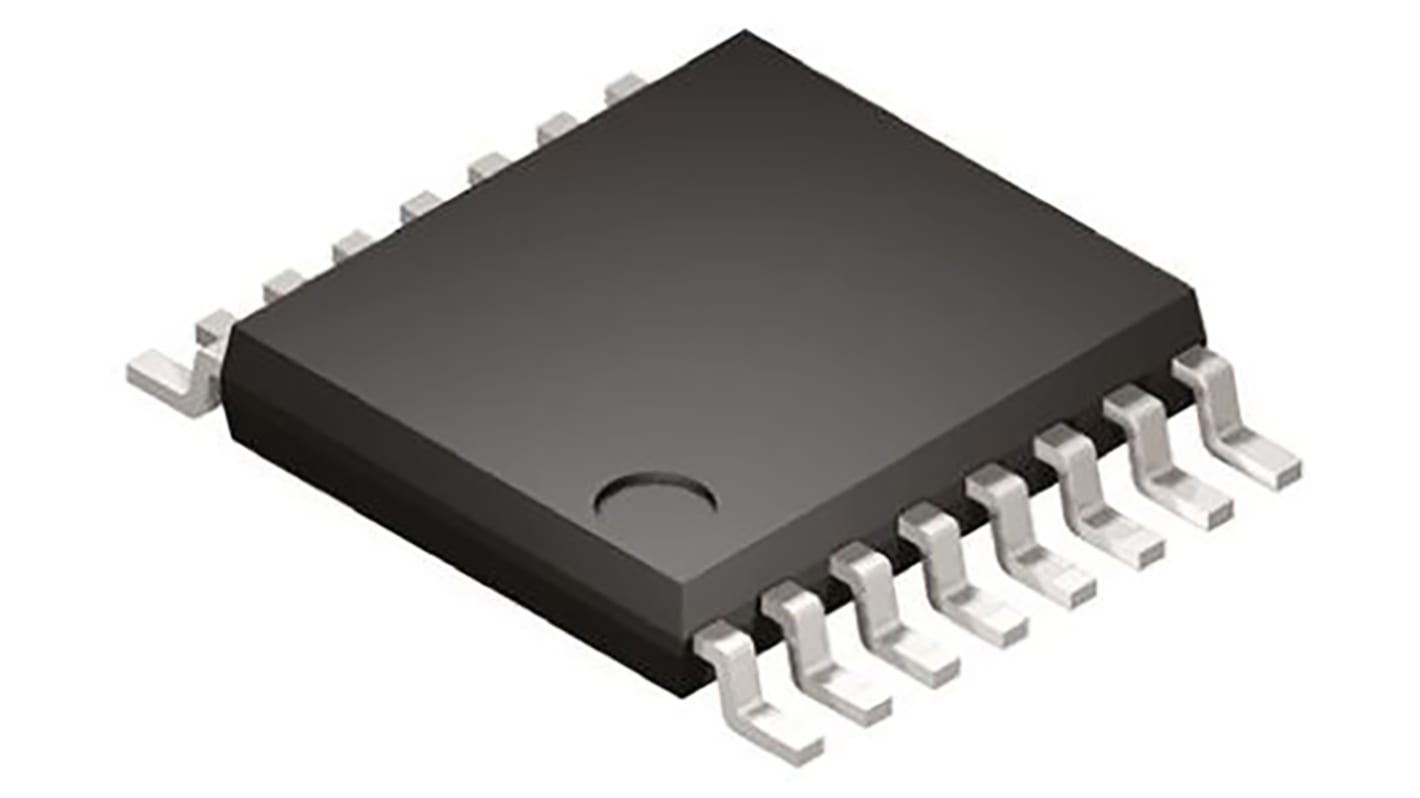

Texas Instruments IC Flip-Flop, JK Type, 74HC, LS-TTL, Differential, CMOS, Negative Edge, TSSOP, 16-Pin
- RS Best.-Nr.:
- 145-0772
- Herst. Teile-Nr.:
- CD74HC112PW
- Marke:
- Texas Instruments
Zurzeit nicht verfügbar, Versand erfolgt sobald lieferbar.
Preis pro Stück (In einer Stange von 90)
0,52 €
(ohne MwSt.)
0,62 €
(inkl. MwSt.)
Stück | Pro Stück | Pro Stange* |
90 + | 0,52 € | 46,80 € |
*Bitte VPE beachten |
- RS Best.-Nr.:
- 145-0772
- Herst. Teile-Nr.:
- CD74HC112PW
- Marke:
- Texas Instruments
Mehr Infos und technische Dokumente
Rechtliche Anforderungen
- Ursprungsland:
- MY
Produktdetails
Flip-Flops und Sperren der 74HC-Familie, Texas Instruments
Flip-Flops und Sperren von Texas Instruments aus der 74HC-Familie von CMOS-Logik-ICs. Die 74HC-Familie basiert auf CMOS-Technologie mit Siliziumgatter, um ähnliche Betriebsgeschwindigkeiten zu erreichen wie die LSTTL-Familie, jedoch mit dem geringen Stromverbrauch normaler integrierter CMOS-Schaltkreise.
Hochgeschwindigkeits-CMOS-Logikschaltkreise
Betriebsspannung: 2 bis 6 V
Kompatiblität: Eingang CMOS, Ausgang CMOS
Betriebsspannung: 2 bis 6 V
Kompatiblität: Eingang CMOS, Ausgang CMOS
Produktfamilie 74HC
Technische Daten
Eigenschaft | Wert |
---|---|
Logikfamilie | 74HC |
Logikfunktion | JK Type |
Eingangs-Typ | CMOS |
Ausgangs-Typ | LS-TTL |
Ausgangssignal-Typ | Differential |
Trigger-Typ | Negative Edge |
Polarität | Inverting, Non-Inverting |
Montage-Typ | SMD |
Gehäusegröße | TSSOP |
Pinanzahl | 16 |
Set/Reset | Reset |
Anzahl der Elemente pro Chip | 2 |
Signalverzögerungszeit @ max. CL | 270 ns @ 50 pF |
Arbeitsspannnung max. | 6 V |
Abmessungen | 5.1 x 4.5 x 1.05mm |
Signalverzögerungszeit @ Testbedingung | 50pF |
Betriebstemperatur max. | +125 °C |
Betriebstemperatur min. | –55 °C |
Breite | 4.5mm |
Höhe | 1.05mm |
Länge | 5.1mm |
Arbeitsspannnung min. | 2 V |
- RS Best.-Nr.:
- 145-0772
- Herst. Teile-Nr.:
- CD74HC112PW
- Marke:
- Texas Instruments
