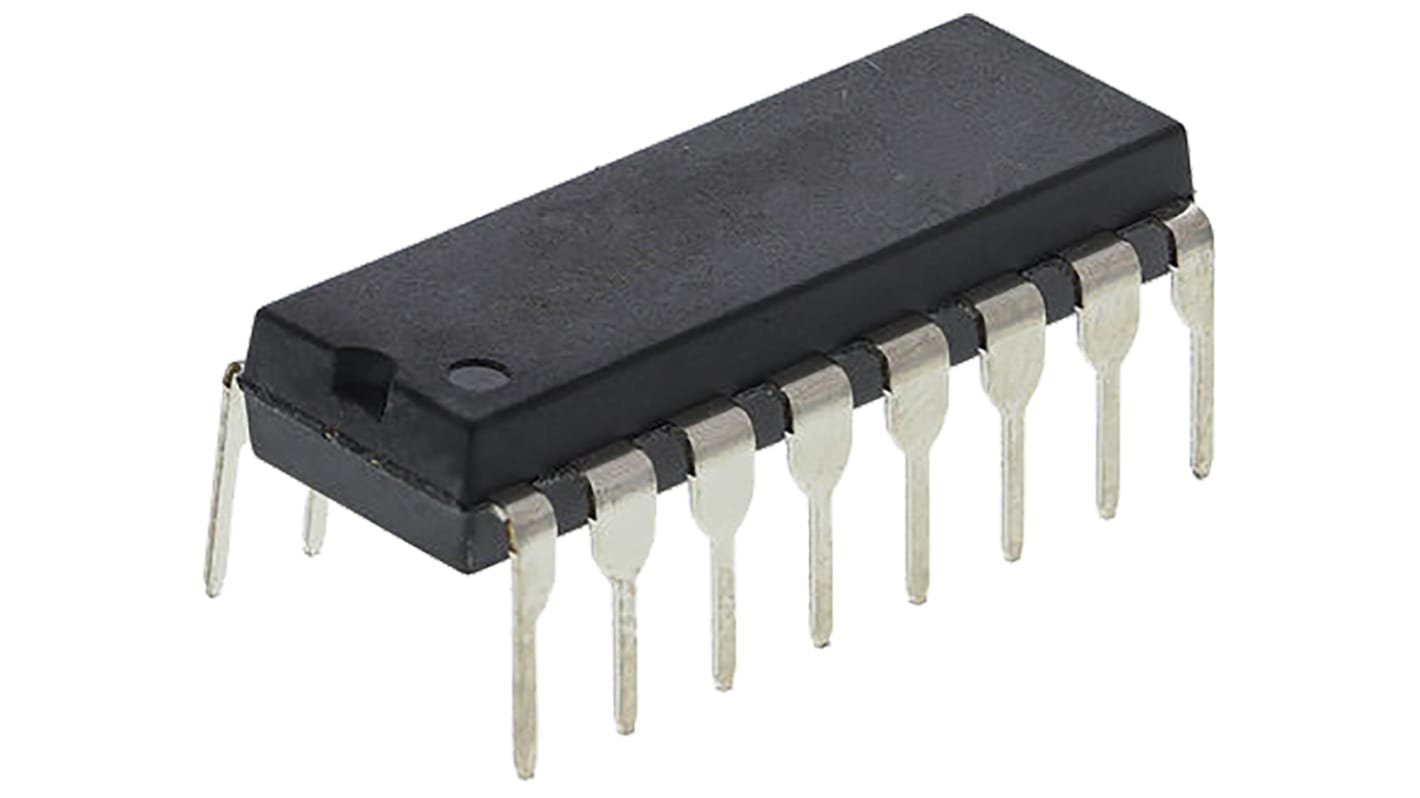

Texas Instruments IC Flip-Flop, JK Type, LS, Differential, Single Ended, Negative Edge, PDIP, 16-Pin
- RS Best.-Nr.:
- 368-4730
- Herst. Teile-Nr.:
- SN74LS112AN
- Marke:
- Texas Instruments
250 lieferbar innerhalb von 1 Werktag(en) (Mo-Fr).
Nicht als Expresslieferung erhältlich
Im Warenkorb
Preis pro Stück (In einer Stange von 25)
0,649 €
(ohne MwSt.)
0,772 €
(inkl. MwSt.)
Stück | Pro Stück | Pro Stange* |
25 - 225 | 0,649 € | 16,225 € |
250 - 350 | 0,52 € | 13,00 € |
375 - 475 | 0,487 € | 12,175 € |
500 - 600 | 0,455 € | 11,375 € |
625 + | 0,389 € | 9,725 € |
*Bitte VPE beachten |
- RS Best.-Nr.:
- 368-4730
- Herst. Teile-Nr.:
- SN74LS112AN
- Marke:
- Texas Instruments
Mehr Infos und technische Dokumente
Rechtliche Anforderungen
Produktdetails
Flipflops und Sperren der 74LS-Familie, Texas Instruments
Flipflops und Sperren von Texas Instruments aus der 74LS-Familie von Schottky-Logik-ICs mit geringer Leistungsaufnahme. Die 74LS-Familie verwendet bipolare Übergänge in Verbindung mit Schottky-Dioden-Klemmen für Betriebsgeschwindigkeiten wie die ursprüngliche 74TTL-Familie, jedoch mit deutlich geringerer Leistungsaufnahme.
Familie 74 LS
Technische Daten
Eigenschaft | Wert |
---|---|
Logikfamilie | LS |
Logikfunktion | JK Type |
Eingangs-Typ | Single Ended |
Ausgangssignal-Typ | Differential |
Trigger-Typ | Negative Edge |
Polarität | Inverting, Non-Inverting |
Montage-Typ | THT |
Gehäusegröße | PDIP |
Pinanzahl | 16 |
Set/Reset | Ja |
Anzahl der Elemente pro Chip | 2 |
Signalverzögerungszeit @ max. CL | 20 ns @ 5 V |
Abmessungen | 19.3 x 6.35 x 4.57mm |
Arbeitsspannnung max. | 5,25 V |
Signalverzögerungszeit @ Testbedingung | 15pF |
Betriebstemperatur min. | 0 °C |
Arbeitsspannnung min. | 4,75 V |
Länge | 19.3mm |
Betriebstemperatur max. | +70 °C |
Breite | 6.35mm |
Höhe | 4.57mm |
