- RS Best.-Nr.:
- 171-7083
- Herst. Teile-Nr.:
- 4N26
- Marke:
- Isocom
260 lieferbar innerhalb von 1 Werktag(en) (Mo-Fr).
Nicht als Expresslieferung erhältlich
Im Warenkorb
Preis pro Stück (In einer Stange von 65)
0,264 €
(ohne MwSt.)
0,314 €
(inkl. MwSt.)
Stück | Pro Stück | Pro Stange* |
65 - 65 | 0,264 € | 17,16 € |
130 - 260 | 0,248 € | 16,12 € |
325 + | 0,231 € | 15,015 € |
*Bitte VPE beachten |
- RS Best.-Nr.:
- 171-7083
- Herst. Teile-Nr.:
- 4N26
- Marke:
- Isocom
Mehr Infos und technische Dokumente
Rechtliche Anforderungen
- Ursprungsland:
- TH
Produktdetails

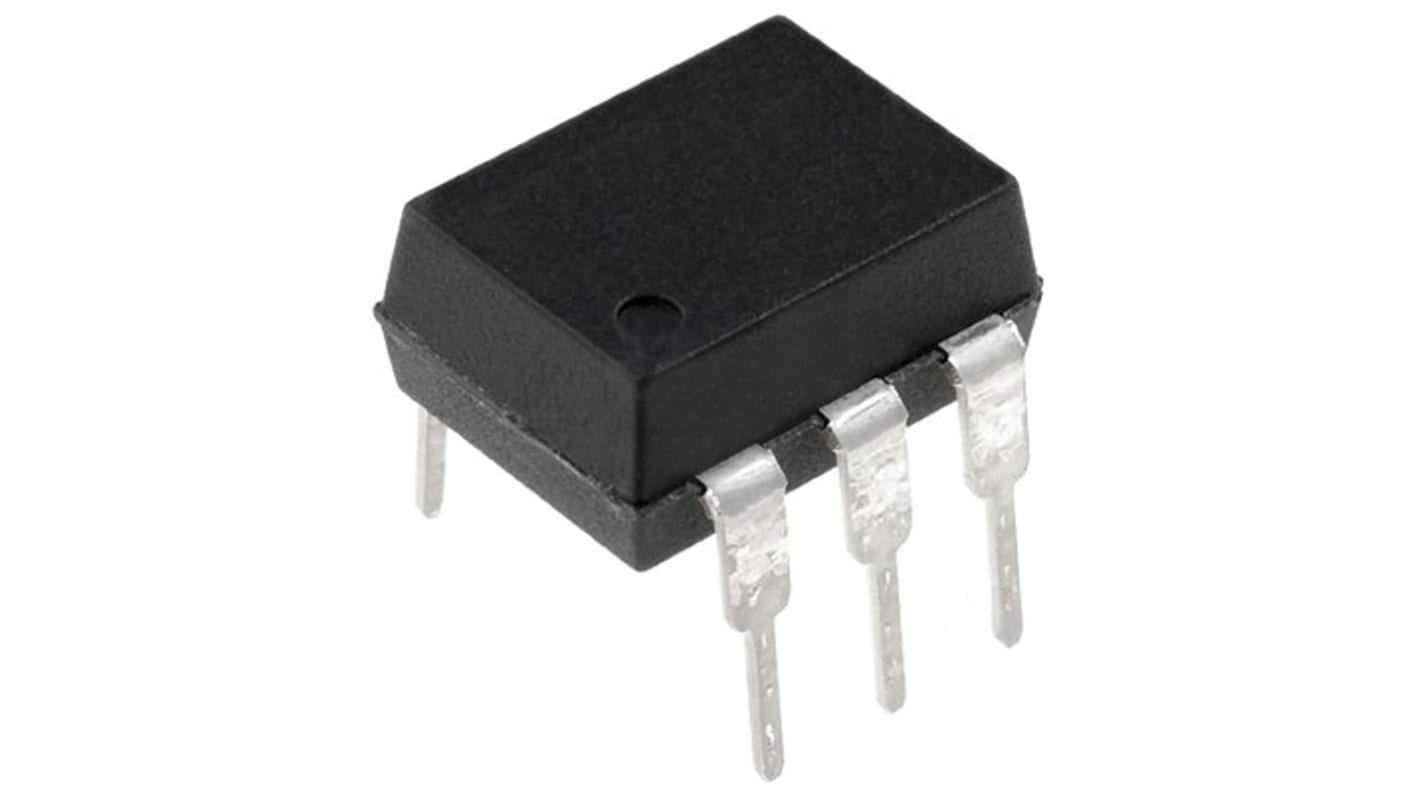

Der 4N26 ist ein optisch gekoppelter Isolator. Er besteht aus einer Infrarot-Licht emittierenden Gallium-Arsenid-Diode und einem NPN-Silizium-Fototransistor in einem standardmäßigen 6-poligen Dual-Inline-Gehäuse.
1500-V-Isolierung
Hohes DC-Stromübertragungsverhältnis
Preiswerte Dual-Inline-Gehäuse
Hohes DC-Stromübertragungsverhältnis
Preiswerte Dual-Inline-Gehäuse
Technische Daten
Eigenschaft | Wert |
---|---|
Montage Typ | SMD |
Ausgangsschaltung | Phototransistor |
Durchlassspannung max. | 1.5V |
Anzahl der Kanäle | 1 |
Anzahl der Pins | 6 |
Gehäusetyp | DIP |
Eingangsstrom Typ | DC |
Regelanstiegszeit | 2µs |
Eingangsstrom max. | 80 mA |
Isolationsspannung | 5,3 kV eff, 7500 V ss |
Fallzeit typ. | 2µs |
Mindeststromübertragungsverhältnis | 20% |
Serie | 4N26 |
