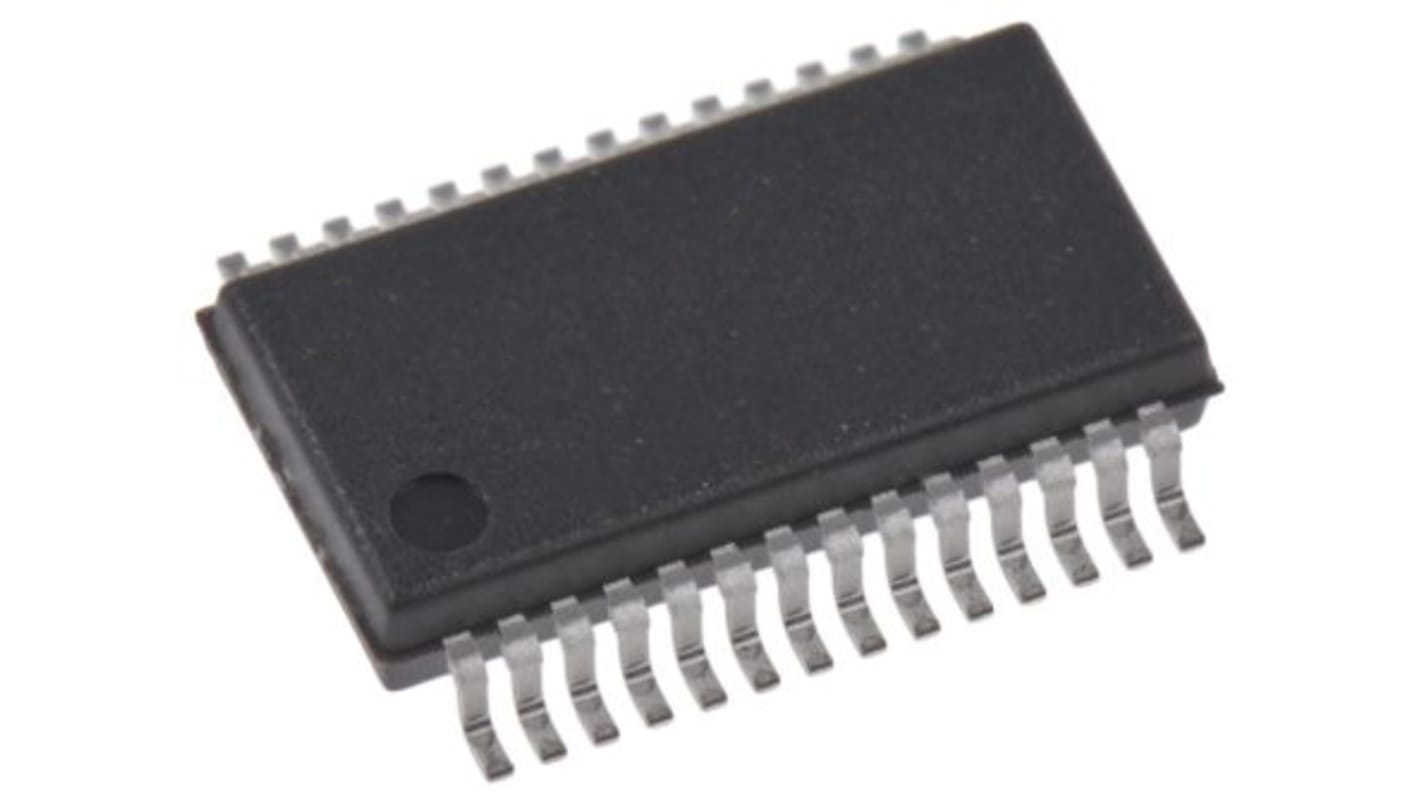

- RS Best.-Nr.:
- 191-3612
- Herst. Teile-Nr.:
- MAX127AEAI+
- Marke:
- Maxim Integrated
19 lieferbar innerhalb von 1 Werktag(en) (Mo-Fr).
Nicht als Expresslieferung erhältlich
Preis pro Stück
40,68 €
(ohne MwSt.)
48,41 €
(inkl. MwSt.)
Stück | Pro Stück |
1 + | 40,68 € |
- RS Best.-Nr.:
- 191-3612
- Herst. Teile-Nr.:
- MAX127AEAI+
- Marke:
- Maxim Integrated
Mehr Infos und technische Dokumente
Rechtliche Anforderungen
- Ursprungsland:
- PH
Produktdetails
12-Bit-Auflösung, 1/2 LSB-Linearität
Betrieb mit +5-V-Einzelversorgung
I2C-kompatible, 2-adrige serielle Schnittstelle
Vier softwarewählbare Eingangsbereiche
Max127: 0 bis +10 V, 0 bis +5 V, ±10 V, ±5 V
Max128: 0 bis +VREF, 0 bis +VREF/2, ±VREF, ±VREF/2
8 analoge Eingangskanäle
8 ksps Abtastrate
±16,5 V übervolttoleranter Eingangs-Multiplexer
Interne 4,096 V oder externe Referenz
Zwei Abschaltmodi
24-polige schmale PDIP- oder 28-polige SSOP-Gehäuse
Anwendungen
Batteriebetriebene Anwendungen
Datenerfassung
Industrielle Steuerungssysteme
Robotik
Betrieb mit +5-V-Einzelversorgung
I2C-kompatible, 2-adrige serielle Schnittstelle
Vier softwarewählbare Eingangsbereiche
Max127: 0 bis +10 V, 0 bis +5 V, ±10 V, ±5 V
Max128: 0 bis +VREF, 0 bis +VREF/2, ±VREF, ±VREF/2
8 analoge Eingangskanäle
8 ksps Abtastrate
±16,5 V übervolttoleranter Eingangs-Multiplexer
Interne 4,096 V oder externe Referenz
Zwei Abschaltmodi
24-polige schmale PDIP- oder 28-polige SSOP-Gehäuse
Anwendungen
Batteriebetriebene Anwendungen
Datenerfassung
Industrielle Steuerungssysteme
Robotik
Technische Daten
Eigenschaft | Wert |
---|---|
Architektur | SAR |
Anzahl der A/D-Wandler | 8 |
Auflösung | 12 bit |
Abtastrate | 8ksps |
Eingangs-Typ | Analog |
Montage-Typ | SMD |
Gehäusegröße | SSOP |
Pinanzahl | 28 |
Integrale Nichtlinearität | ±1/2LSB |
Stromversorgungs-Typ | Single |
Versorgungsspannung einzeln typ. | 5 V |
Betriebstemperatur min. | –40 °C |
Betriebstemperatur max. | 85 °C |
Abmessungen | 10.33 x 5.38 x 1.78mm |
