- RS Best.-Nr.:
- 177-9619
- Herst. Teile-Nr.:
- ATWILC3000-MR110CA
- Marke:
- Microchip
12 lieferbar innerhalb von 4 Werktag(en) (Mo-Fr).
Nicht als Expresslieferung erhältlich
Im Warenkorb
Preis pro Stück
9,77 €
(ohne MwSt.)
11,63 €
(inkl. MwSt.)
Stück | Pro Stück |
1 + | 9,77 € |
- RS Best.-Nr.:
- 177-9619
- Herst. Teile-Nr.:
- ATWILC3000-MR110CA
- Marke:
- Microchip
Mehr Infos und technische Dokumente
Rechtliche Anforderungen
- Ursprungsland:
- CN
Produktdetails

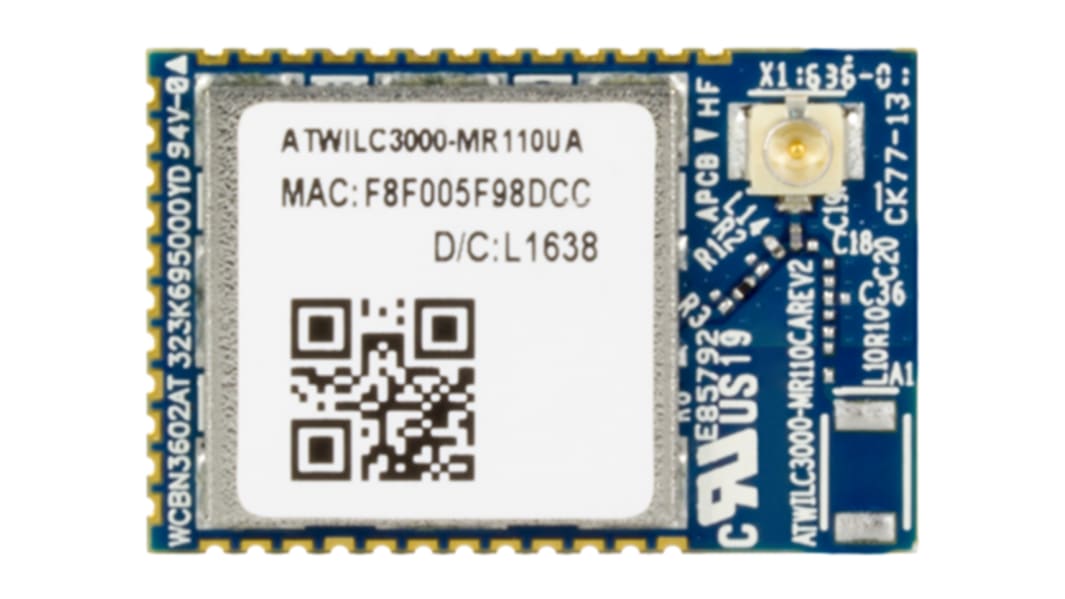

ATWILC3000 is a single chip IEEE 802.11 b/g/n RF/Baseband/MAC link controller and Bluetooth 5. The ATWILC1000 connects to Microchip AVR/SMART MCUs, SMART MPUs, and other processors with minimal resource requirements with simple SPI/SDIO-to-Wi-Fi and UART-to-Bluetooth interfaces. The ATWILC3000 supports single stream 1x1 802.11n mode providing tested throughput of up to 46 Mbps UDP & 28 Mbps TCP/IP.
20MHz (1x1) Wi-Fi plus Bluetooth 5 Low Energy Module
Single spatial stream in 2.4GHz ISM band
Integrated PA and T/R Switch
Superior Sensitivity and Range via advanced PHY signal processing
Wi-Fi Direct and Soft-AP support
Supports Personal & Enterprise WEP, WPA, WPA2 Security
On-chip memory management engine to reduce host load
SPI, SDIO, I2C, and UART host interfaces
HCI (Host Control Interface) via high speed UART
Operating temperature range of -40C to +85C
Single spatial stream in 2.4GHz ISM band
Integrated PA and T/R Switch
Superior Sensitivity and Range via advanced PHY signal processing
Wi-Fi Direct and Soft-AP support
Supports Personal & Enterprise WEP, WPA, WPA2 Security
On-chip memory management engine to reduce host load
SPI, SDIO, I2C, and UART host interfaces
HCI (Host Control Interface) via high speed UART
Operating temperature range of -40C to +85C
Technische Daten
Eigenschaft | Wert |
---|---|
Unterstützte Sicherheitsstandards | WEP, WPA, WPA2 |
Unterstützte Busschnittstellen | SDIO, SPI |
Versorgungsspannung | 3 to 3.6V |
Abmessungen | 22.4 x 14.7 x 2mm |
Höhe | 2mm |
Länge | 22.4mm |
Betriebstemperatur max. | +85 °C |
Betriebstemperatur min. | –40 °C |
Breite | 14.7mm |
